How a Subdivision Road Gets Built, Layer by Layer

A finished subdivision street doesn't give you much to look at. You get asphalt, curb, and a few metal lids and grates sitting flush with the surface. But the asphalt is only the top of the road. Under those eight inches or so of pavement runs the stone base, and under that the compacted soil the whole street depends on.

Two streets can look identical at the surface. One can sit on a subgrade compacted to the 98-100 percent its spec calls for. The other can sit on subgrade that never hit the number. But the asphalt won't tell you which is which. The difference shows up years later as rutting and cracking. So the layers underneath decided how long the road will last.

The street is one of the largest line items in subdivision development, though almost none of it can be inspected again. The tests run between the layers are the only record of how they went in. Knowing what those tests are, and when they happen, is how a developer judges the work while it's still visible.

Here's what goes in underneath, layer by layer.

Deep Utilities Go in First

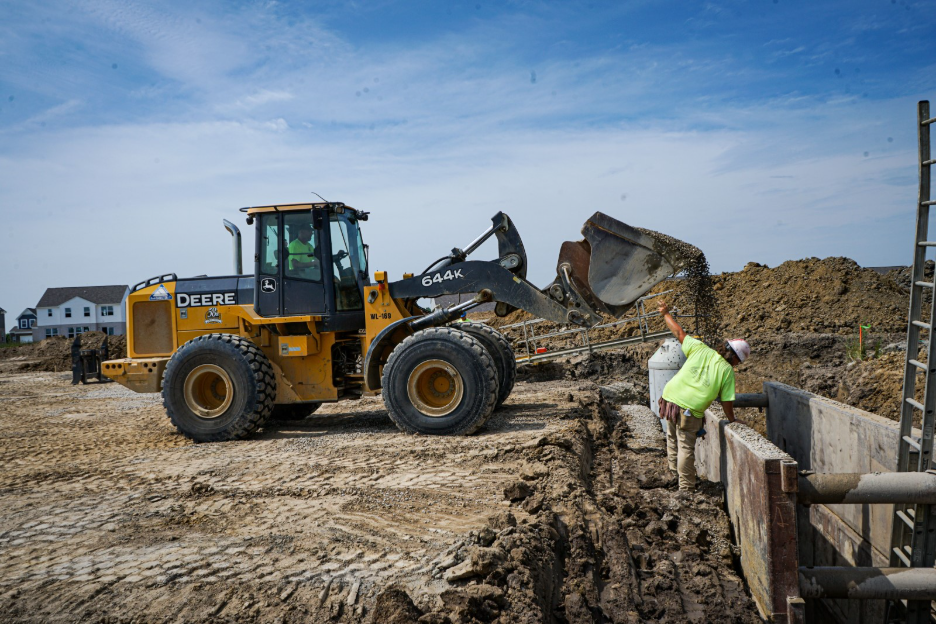

Sanitary sewer, storm sewer, and water lines all cross under the street. They go in first, and everything gets backfilled and tested before subgrade work starts. Crews also settle where water goes once the street is in place before anything covers the pipe. That means inlets and manholes go in with the storm pipe, and their metal tops get raised to street level much later, once the final asphalt goes down.

The backfill over those pipes is the weak point. A trench cuts a strip of loosened soil straight across the road. That strip has to carry the same load as the ground on either side of it. Backfill that goes in fast and loose stays soft. And if the drainage isn't right, water does the same damage from below. It collects under the pavement and weakens the layers holding it up. Years later, the pavement above it cracks along the line of the trench.

Nothing gets covered until it's been tested, because a mistake down there stops being fixable. The backfill gets density tested as it comes up, layer by layer, against the same standard the subgrade has to meet. That's why crews fill the trench in thin layers and pack each one down, instead of dropping the dirt in and running a roller over the top. Those test results are the only evidence the trench was built right, because the subgrade goes over it the next day.

Compacting the Subgrade

Once the utilities are in and the trenches are back to grade, the subgrade is the next thing to go under a roller. It's the last soil the road will ever sit on, and its compaction is where road failure gets prevented or built in. Soil that stays loose moves under load. Any pavement above it will rut and crack years later.

The subgrade gets checked twice before the stone goes on. Municipal specs put a number on how much compaction is enough. The top 6 to 12 inches has to reach 98 to 100 percent of maximum laboratory dry density. Density tests taken as the work goes confirm it.

The last check is a proof roll. A loaded truck weighing 70,000 pounds or more crosses the surface while an inspector watches the ground behind it. Ruts fail it. So does flex past roughly half an inch. A failure stops the work. The soil gets dried out, dug out and replaced, or treated. Whichever fix it takes, testing has to run a second time before the work moves on. The schedule stretches to fit that. Building permits move back with it.

How Deep the Stone Base Goes

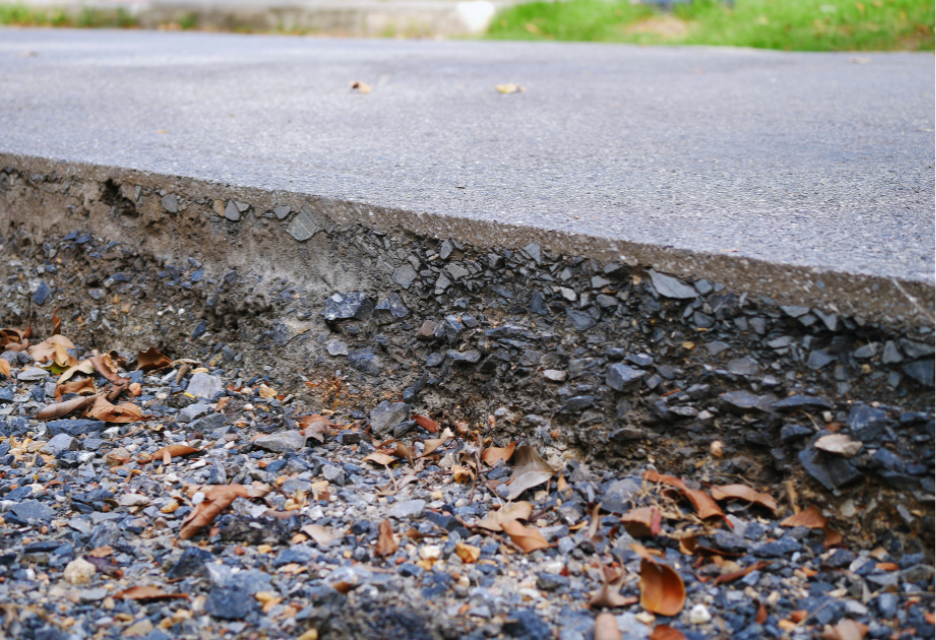

Once the subgrade passes, the stone base goes on top of it. Its job is to keep a wheel's load off the soil underneath. A tire touches the pavement over a small area. That point load spreads as it travels down through the stone, reaching the soil as a wide cone of pressure. A deeper base makes a wider cone and less pressure on the subgrade.

The stone depth on one subdivision design won't match the depth on the last one, because the municipality sets it. Each one publishes a design spec that applies across its whole territory, and the number behind it comes from a general read of four things:

• Bearing strength of the native soil, because weak ground needs more stone above it
• The axle loads the street will carry
• Local frost depth, which is why a detail that works farther south won't transfer here
• How well water drains out from under the road

It doesn't get recalculated job by job.

The stone gets its own checks before the paver arrives. Crews verify thickness and grade, then run a second proof roll across the base. A base laid over a subgrade that passed can still fail on its own. That's why the test repeats at every layer.

Why Curb Goes in Before Paving

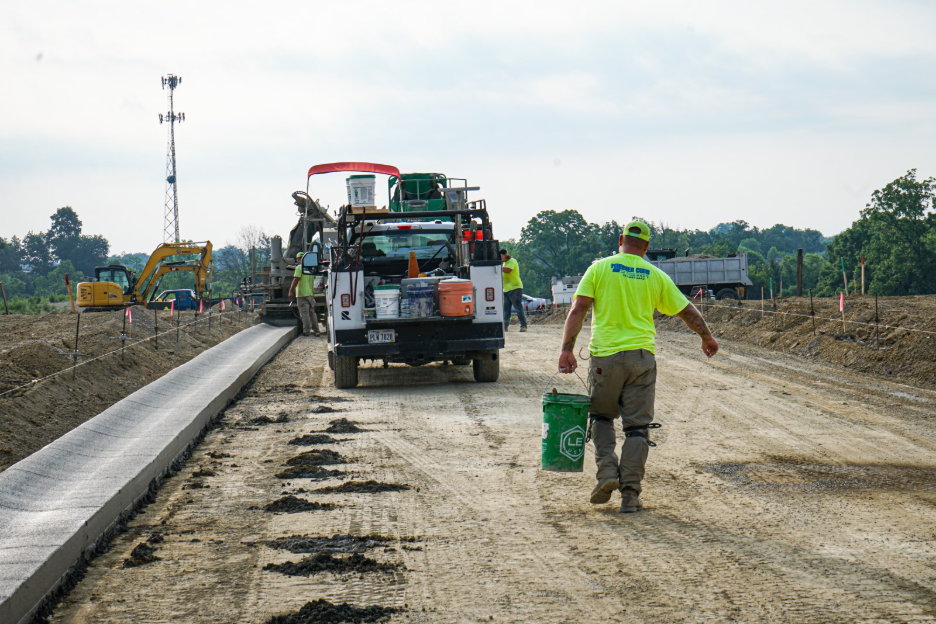

With the stone base tested, the curb goes in before any asphalt. It gives the paving crew a set height to pave against down both sides of the street. The crew works off that line for the full length, which produces uniform asphalt thickness. Curb elevation on both sides also fixes the crown, and a 2 to 3 percent cross-slope carries water off the pavement into the gutter.

Curb also holds the edge of the pavement in place. Asphalt near an open edge can push sideways under a wheel, so it flexes more than the middle of the street and starts cracking and crumbling there first. The curb is a concrete wall poured tight against that edge, which keeps the asphalt from moving and lets the full width of the street carry weight the same way.

The curb gets checked before the paving crew arrives, because everything they do is measured off it. An inspector looks at the slope of the gutter line, the joint spacing, and the ramps measured for ADA compliance. Anything off grade gets fixed now. Once the asphalt is down, the street is built to that line for good.
